| €255,000 | | |
| Status: | Available |
| Location: |
Netherlands [View Map] |
| Reference: | 104290 |
Video
Description

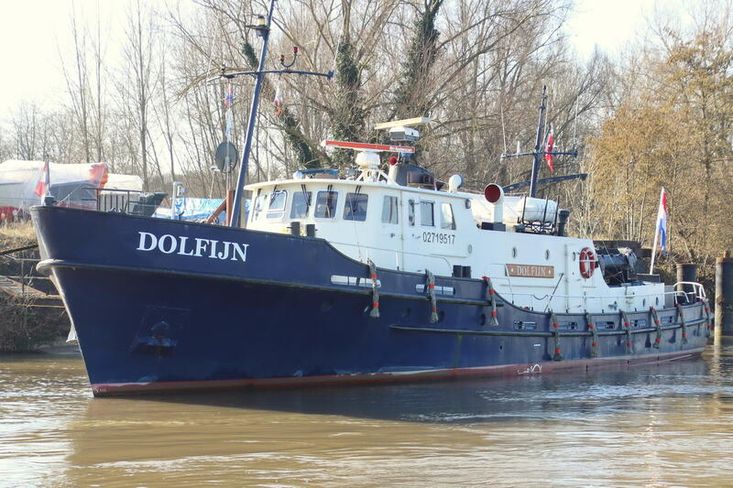

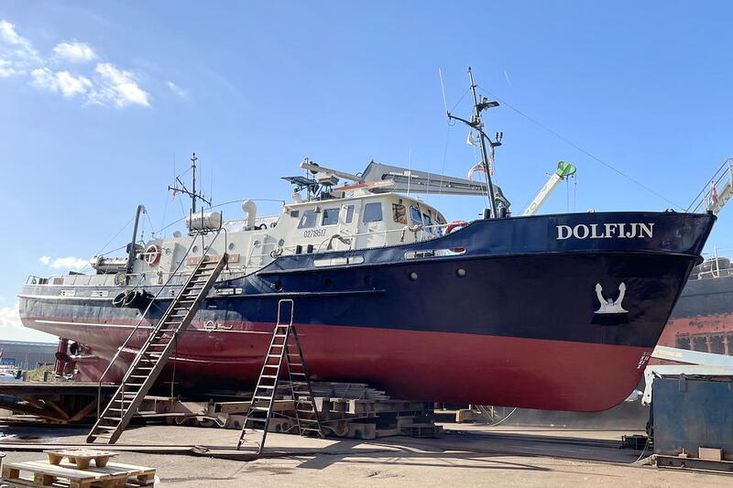

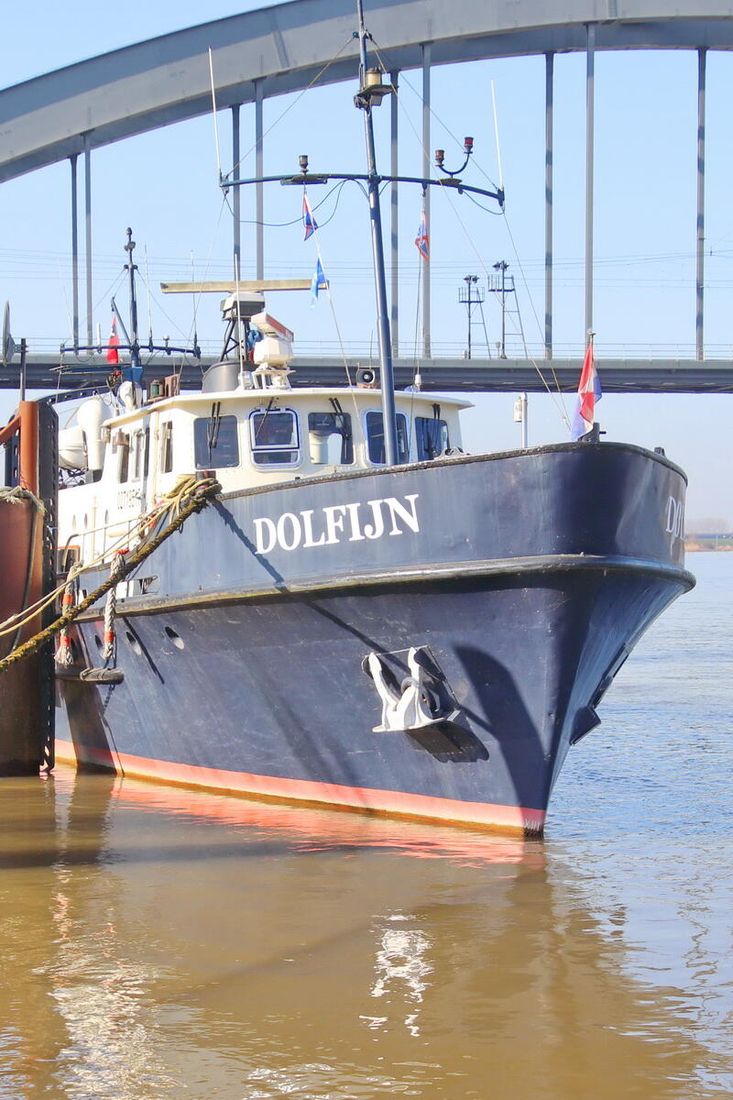

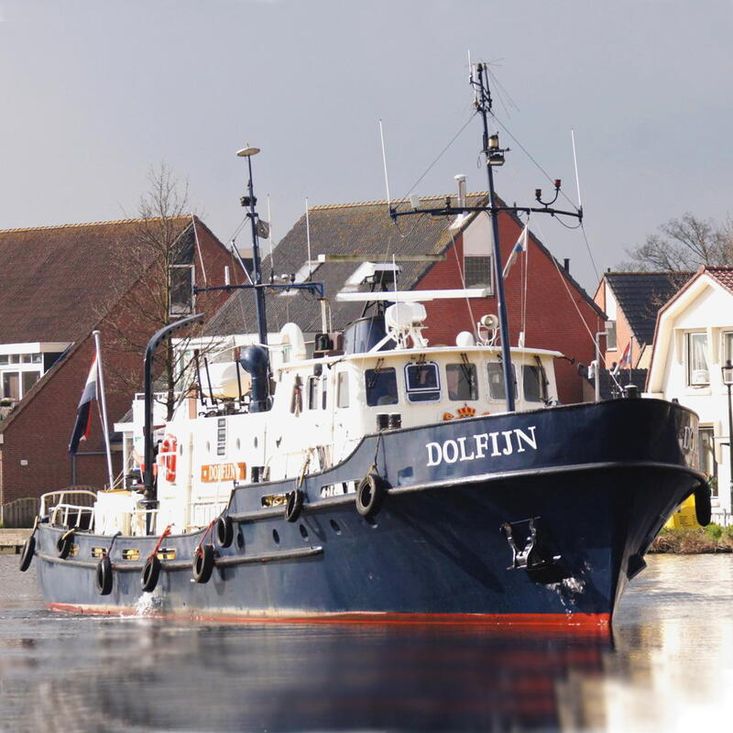

Beautifully lined, seagoing former customs vessel (H.W. de Voogt), stylishly converted into a comfortable liveaboard with generous deck space, 5 cabins and 10 berths, registered as a sailing heritage vessel (A), powered by a powerful Stork Werkspoor main engine, excellently maintained and ready to sail, with a possible mooring in Culemborg offering stunning views over the river Lek.
Specifications
| Vessel name: | Dolfijn |
| Condition: | Good |
| Vessel type: | Patrol boat |
| Designer: | H.W. de Voogt |
| Builder: | Fa. Akerboom |
| Make: | Akerboom |
| Model: | Patrol boat |
| Constructed: | 1957 |
| HIN: | 107 |
| Berths: | 10 |
| Cabins: | 5 |
| Heads: | 10 |
| No. of engines: | 1 |
| Engine model: | Stork Werkspoor SW DRO 216 |
| Engine power: | 600 |
| Fuel type: | Diesel |
| Fuel Consumption: | 33 Litres Per Hour |
| Drive type: | Shaft drive |
| Cruising Speed: | 9 Knots |
| Maximum Speed: | 12 Knots |
| Length over all: | 24.85m |
| Beam: | 5.35m |
| Maximum draft: | 2.21m |
| Bridge clearance: | 8.95m |
| Hull material: | Steel |
| Hull type: | Deep Vee |
| Hull colour: | Dark blue |
| Displacement: | 70 tons |
| Fuel capacity: | 4000 Litres |
| Water capacity: | 2400 Litres |
Accommodation
Layout

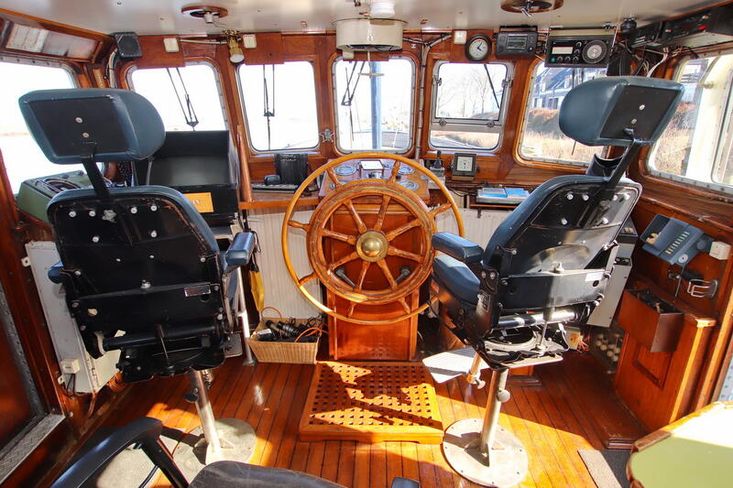

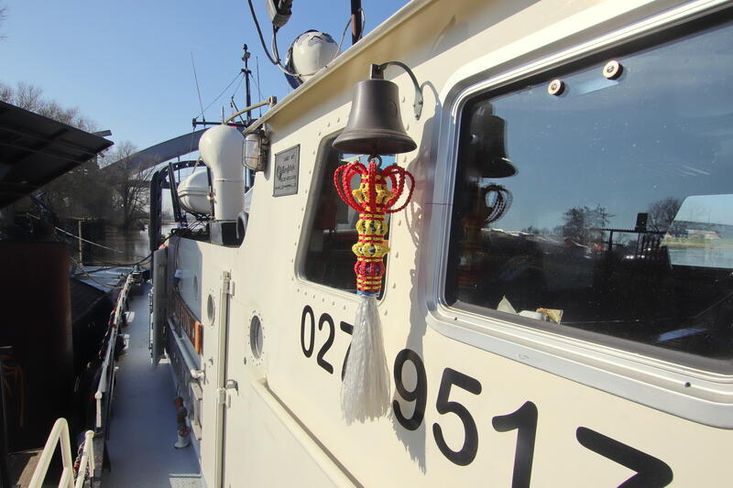

Wheelhouse

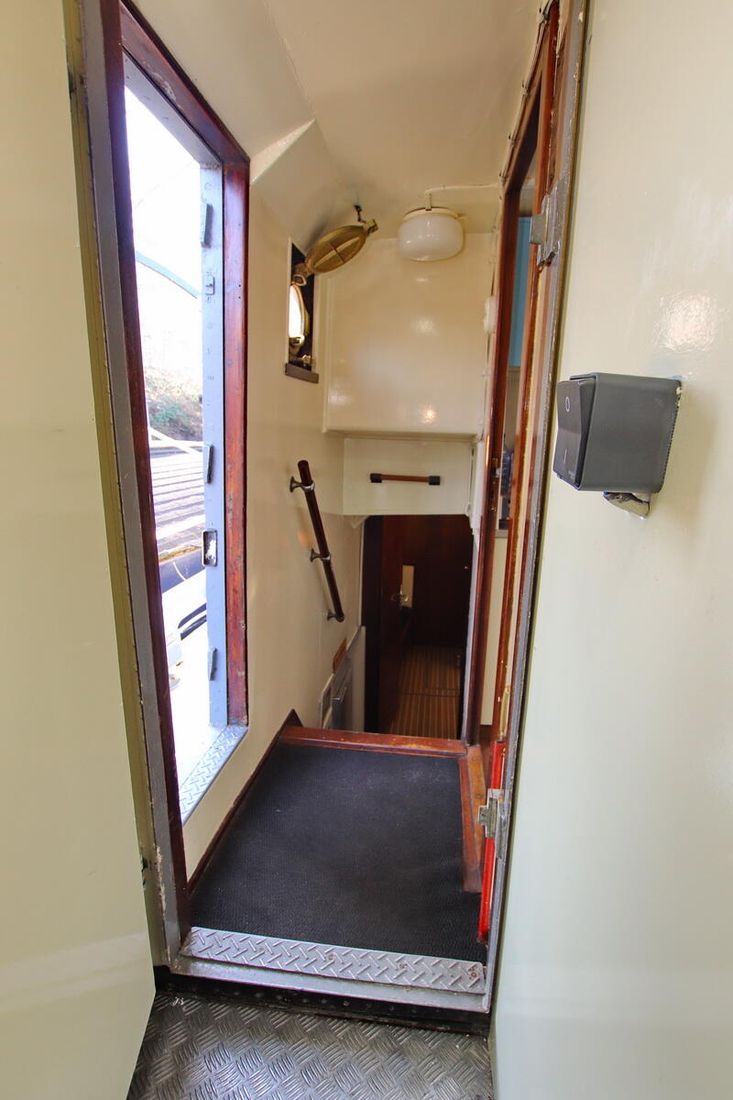

Hallway

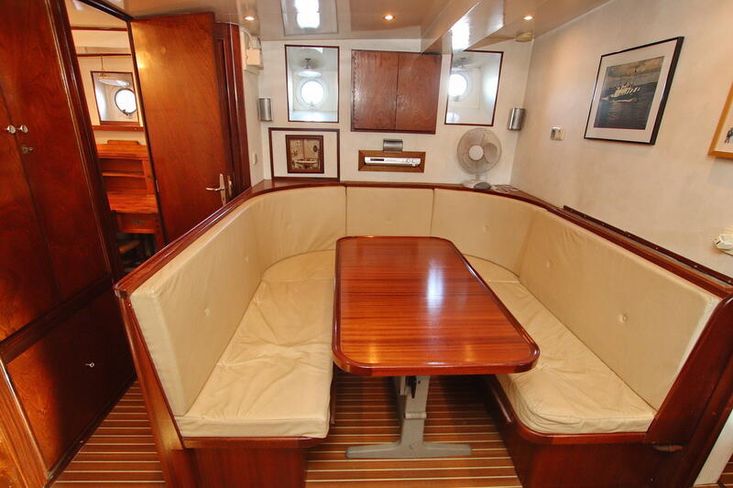

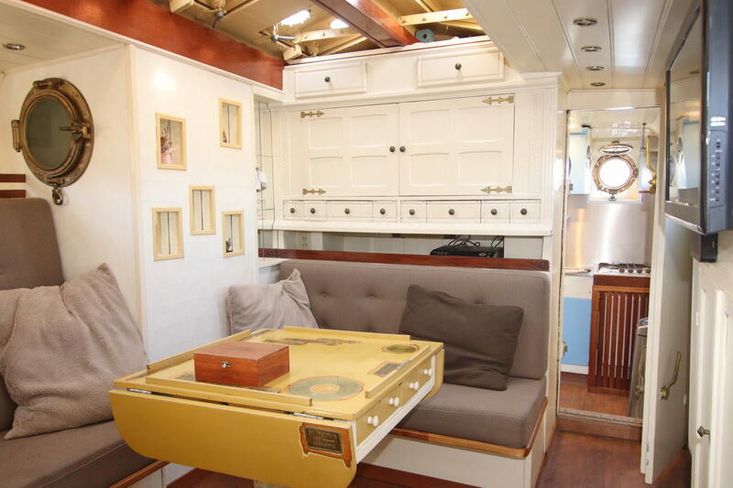

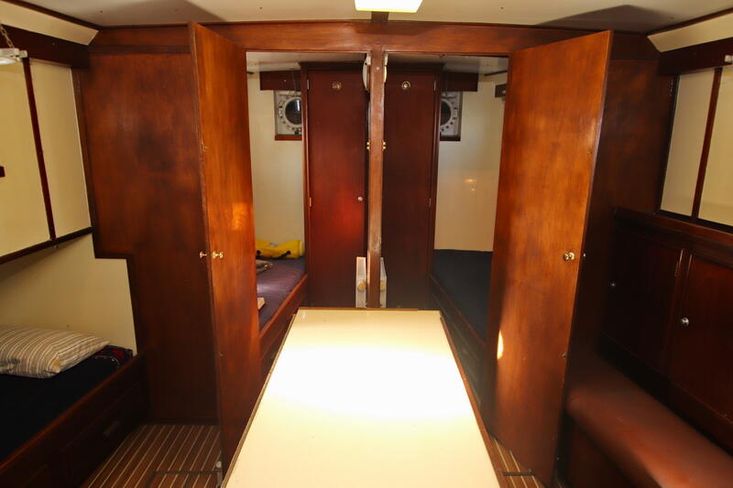

Saloon
Galley

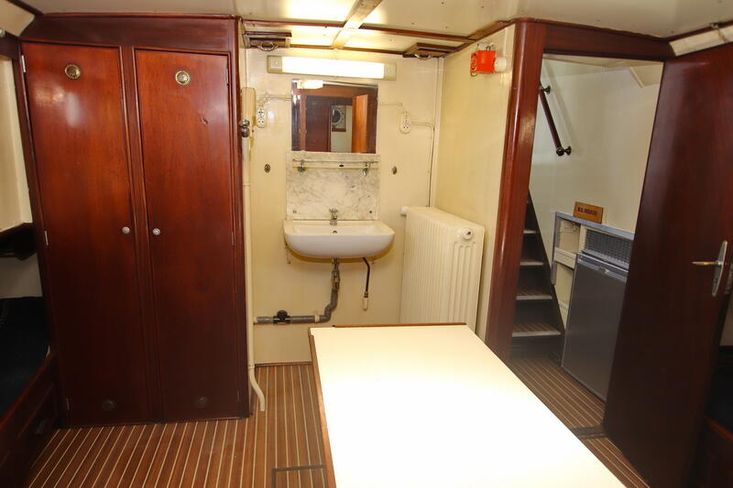

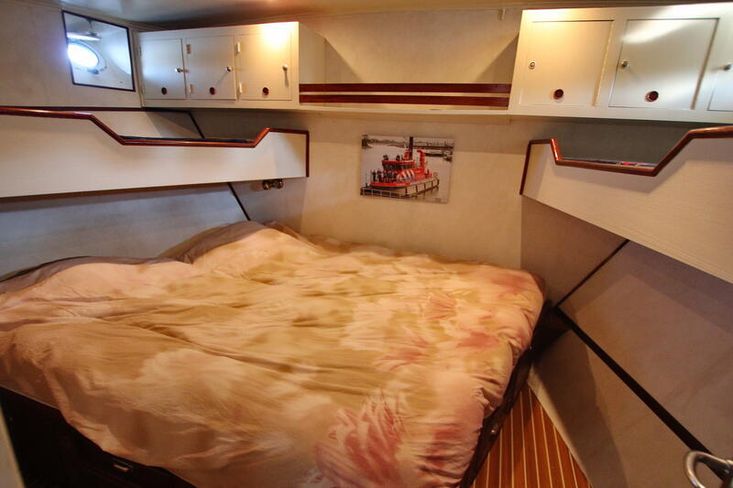

Bedroom
Office
Second galley
Aft cabin with berths
Laundry room

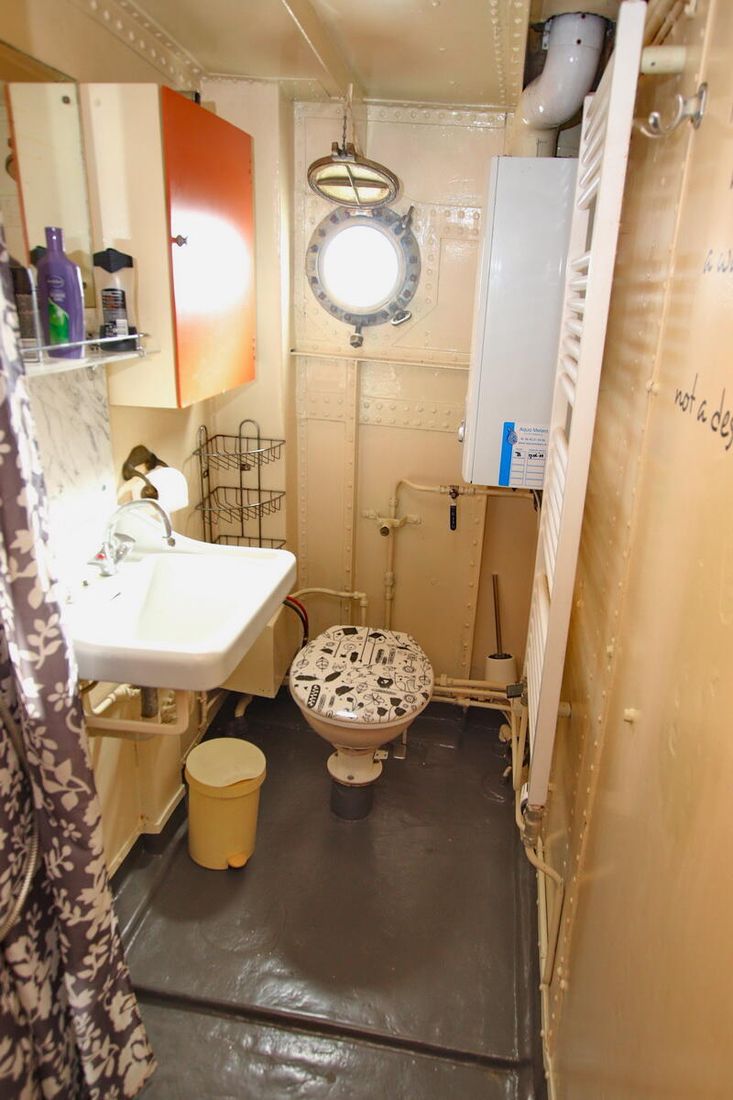

Toilet / shower

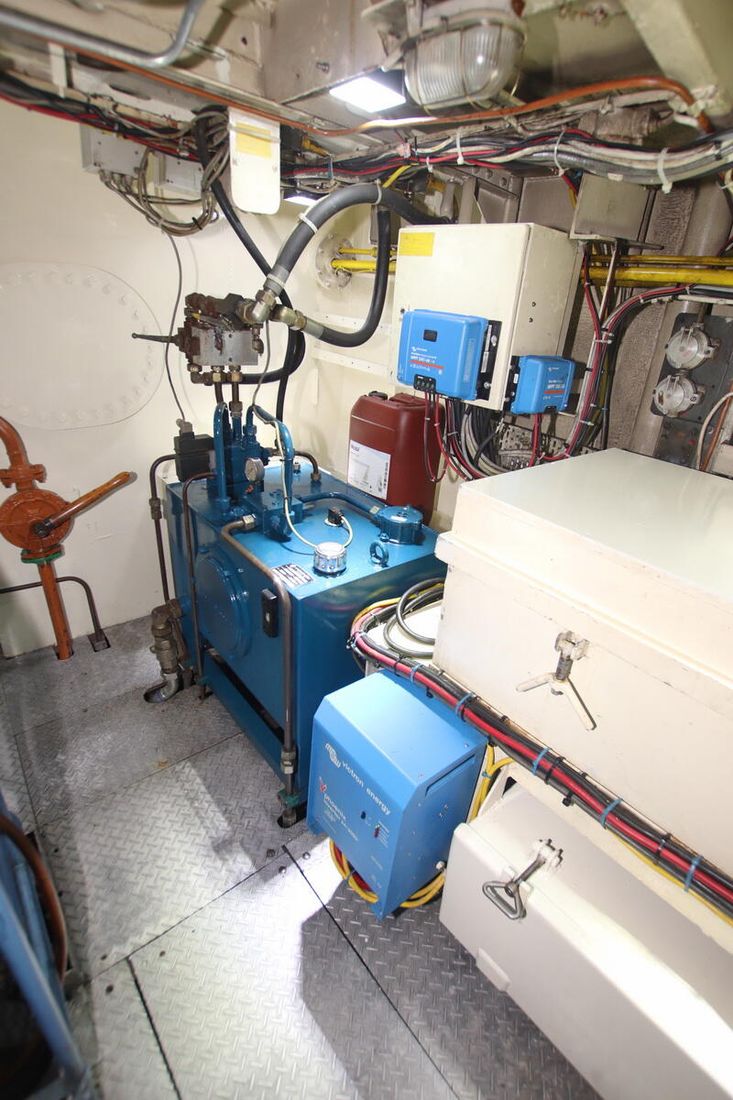

Engine room
Cabins
5
Berths & sleeping places
10
Interior finish
Panel material
Mahogany
Wooden tongue-and-groove paneling
Headroom
Approx. 1.93 – 2.20 m
Heating
Central heating (Kabola diesel-fired)
Radiators in all living areas

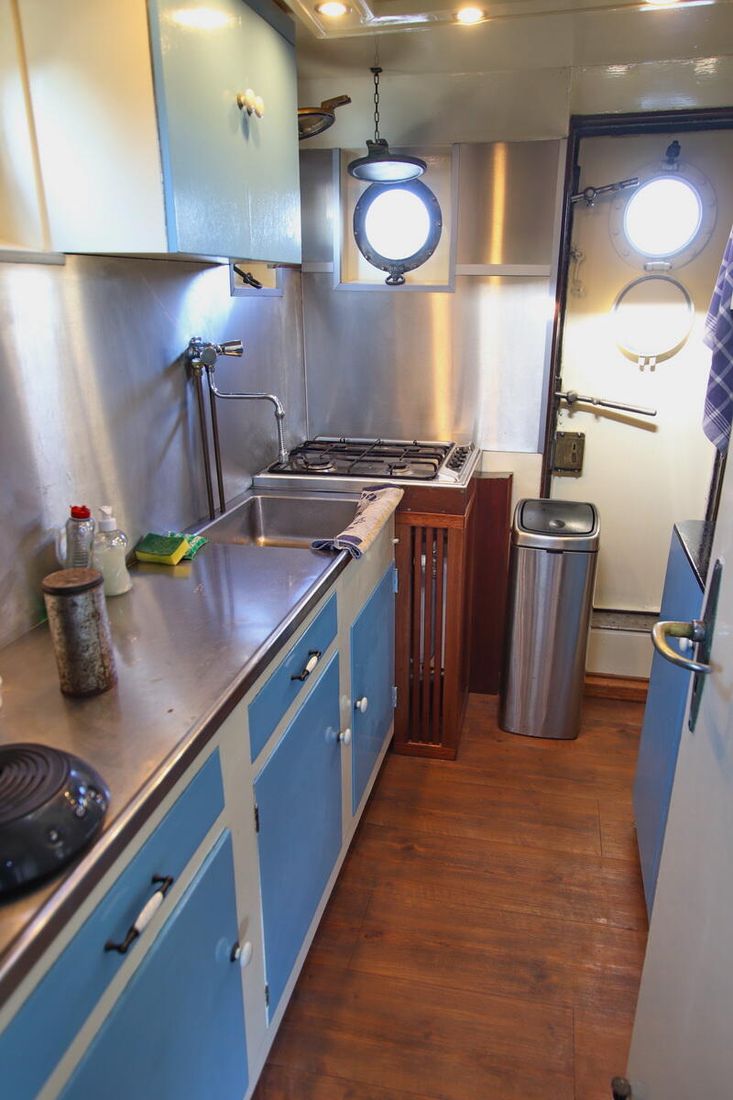

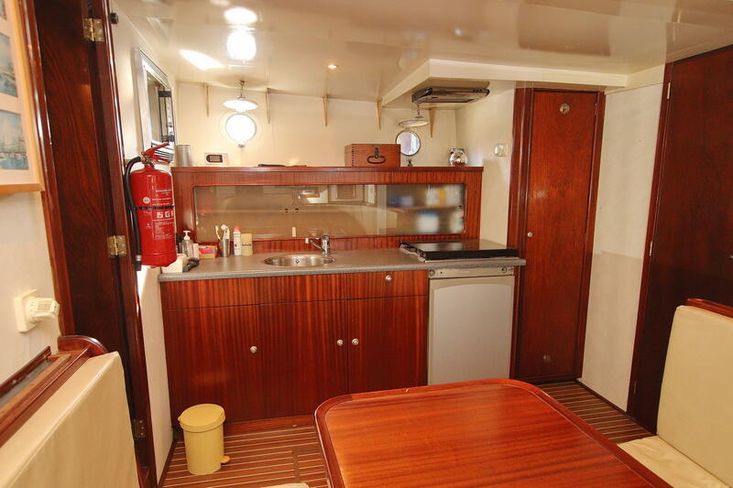

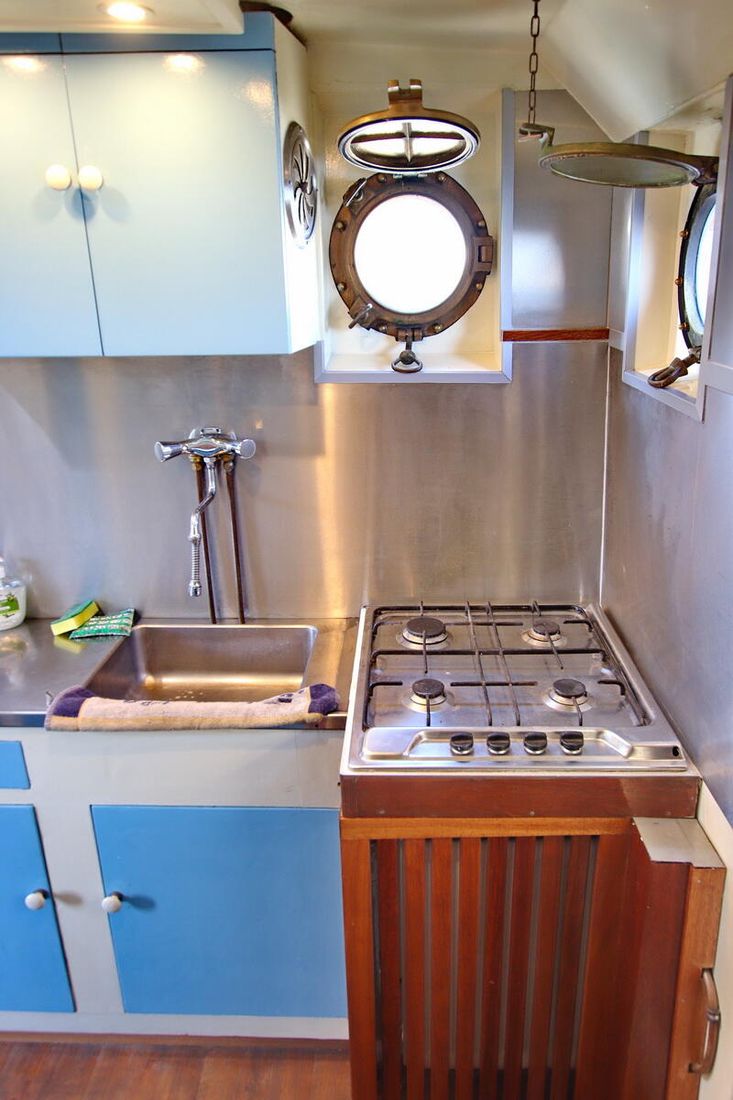

Kitchen & galley
Galley with cupboards and heating
Second kitchen in the accommodation
Cooker & stove
2 x 4-burner gas
Refrigerator
2 x, 1 compressor

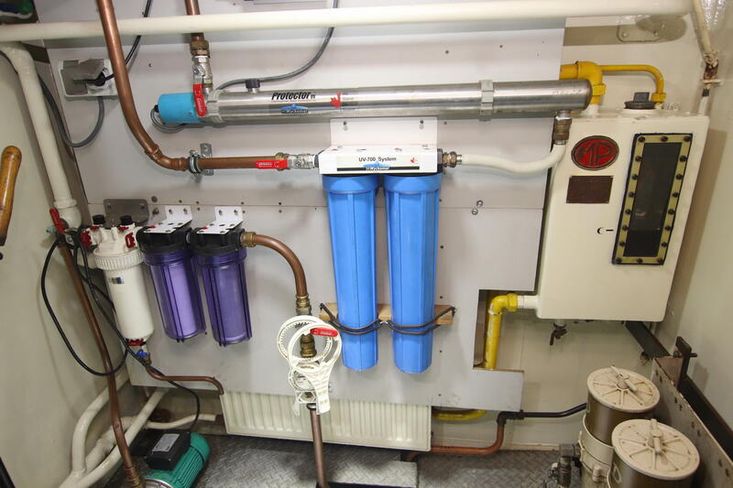

Water system
Hydrophore with expansion tank
Water purification system
Hot water
Vaillant gas water heater
Shower / bath
Available
Toilets
Available
Washbasins
Available
Fresh water tanks
2 x 1200 L
Inventory
By agreement
Insulation
Living area insulated with rock wool
Remarks
Wyckomar water purification system
Headroom per area
Wheelhouse 1.96 m

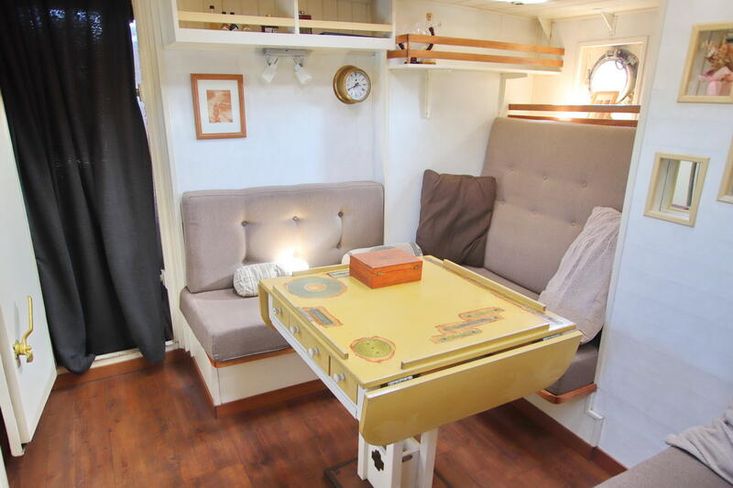

Dinette (midships) 2.01 m
Bedroom 1.97 m
Office 1.94 m
Hall (washing machine/dryer) 1.93 m
Toilet / shower 2.00 m
Living space above engine 2.20 m
Galley 2.20 m
Engine room starboard 2.05 m
Engine room port 1.93 m
Hall next to galley 1.93 m
Aft cabin midships 1.93 m
Construction
Designer
H.W. de Voogt
Builder of the hull
Akerboom, Lisse, no. 107
Hull shape
Round-bilged
Keel shape
V-shaped
Building material
Corten steel, aluminium superstructure
Bulkheads
4
Displacement
70 m³
Ballast
Lead, forepeak
Hull construction
Riveted and welded steel

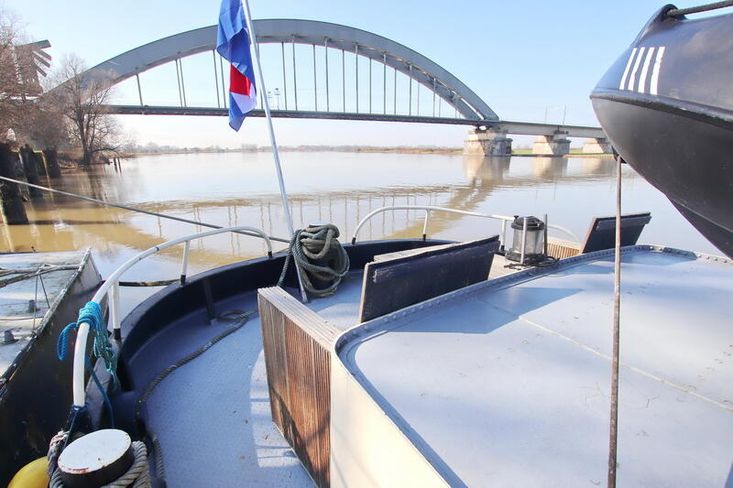

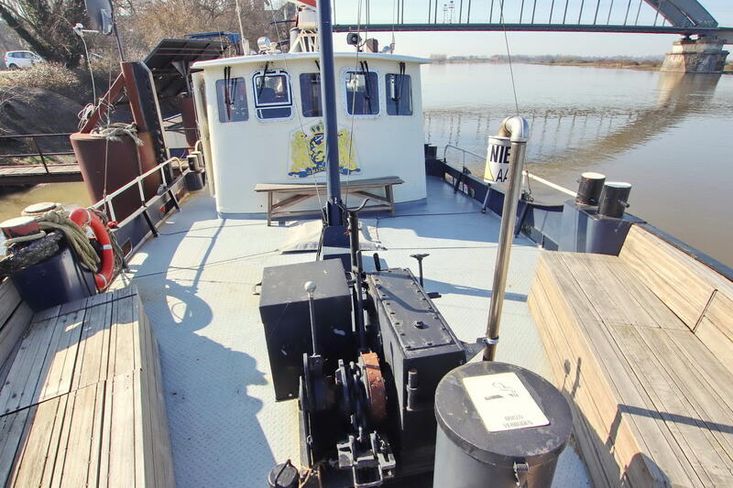

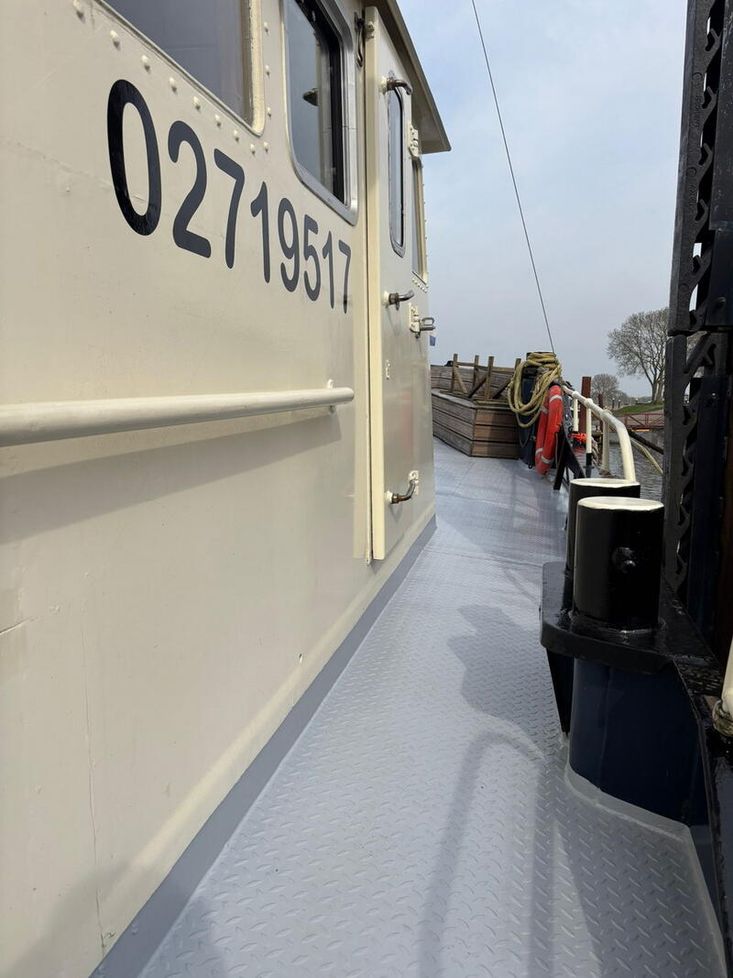

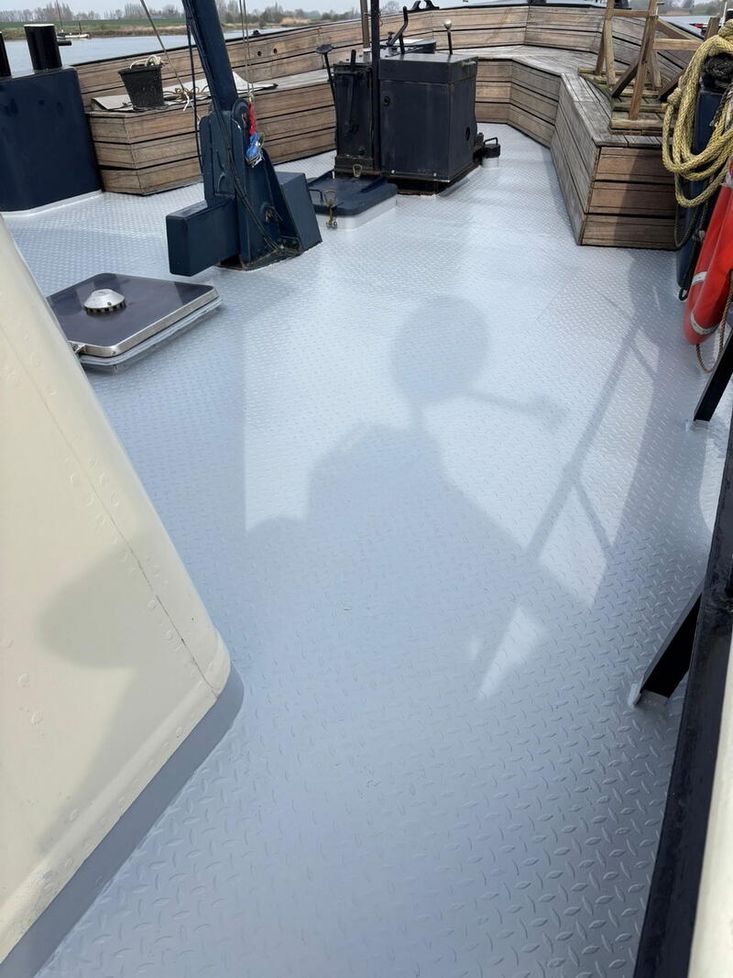

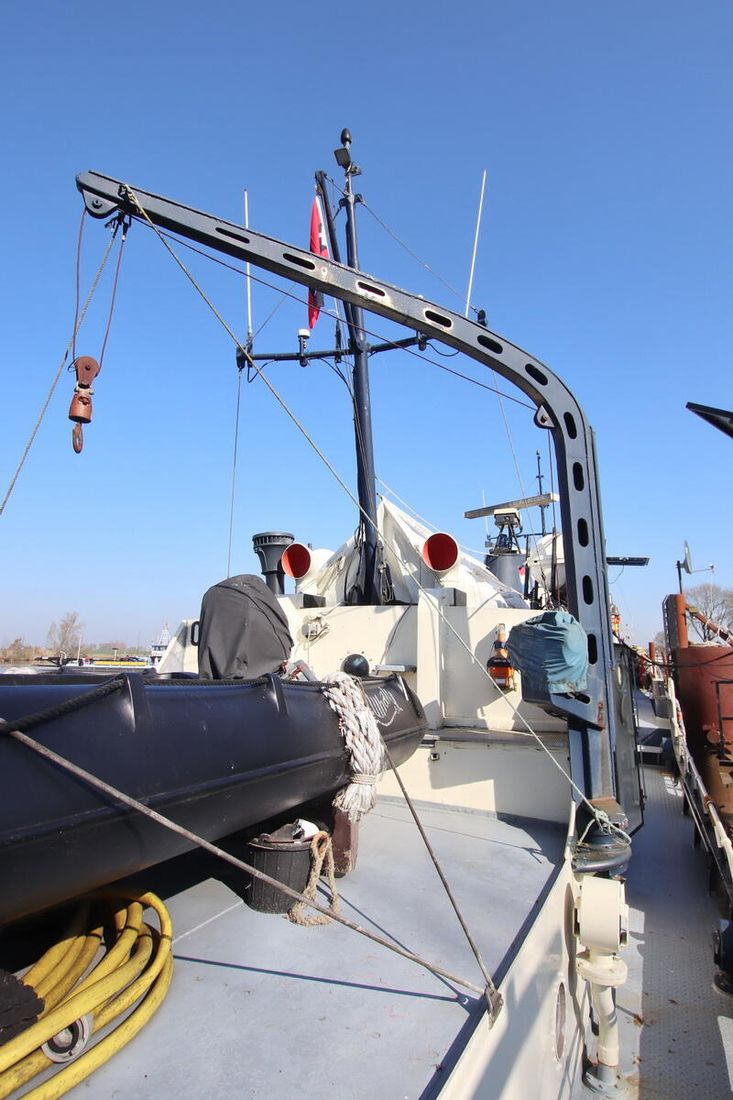

Deck
Steel, checker plate
Deck structure
Aluminium
Windows
8 mm Hora marine windows in aluminium

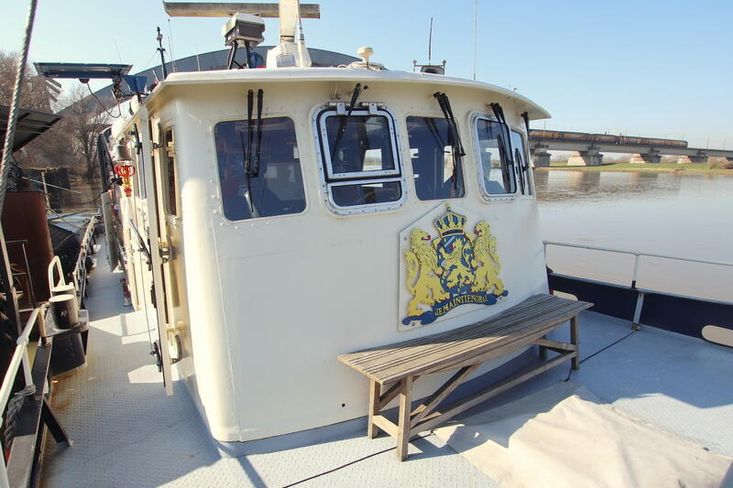

Wheelhouse
Aluminium
Steering
Hydraulic / electric
Air draft
8.95 m, reduced clearance approx. 5.85 m
Last hull survey
14-10-2022
Recent works
Steering system overhauled
Double plating
None
CBB/CVO
CVO valid until 14 October 2029
Shore power
220 V
Persons
10
Sailing area
Inland and coastal waters
Remarks
Robust seagoing vessel
Equipment

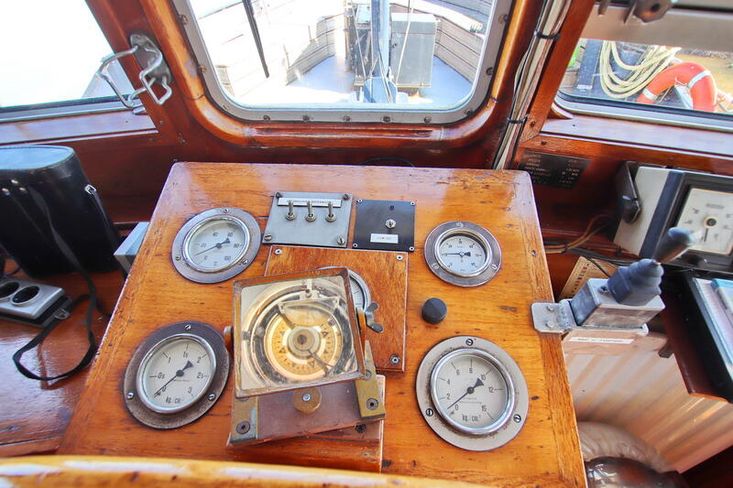

Navigation Equipment
Compass
Available
Echosounder
Available
Log & speedometer
GPS with laptop and chart software
Radio
Sailor SSB and 2 x FM
VHF
RT 144 Sailor, Icom and Furuno VHF-8500
Radar
Racal Decca sea radar and JRC Radio Holland river radar
Autopilot
Hydraulic electric, H.K. Krampe & Co.
Rudder indicator
Available
Positioning system
AIS
Navigation lights
Available plus anchor light
Searchlight
Available
Barometer
Available
Clock
2 x
Remarks
Fishfinder
Navtex
SART

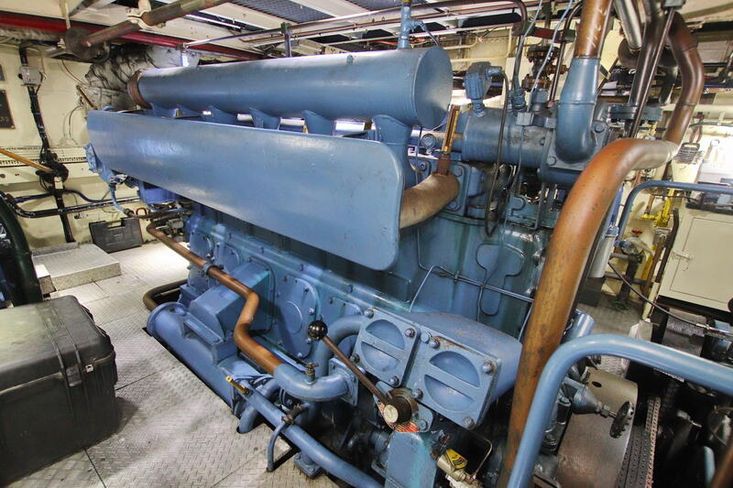

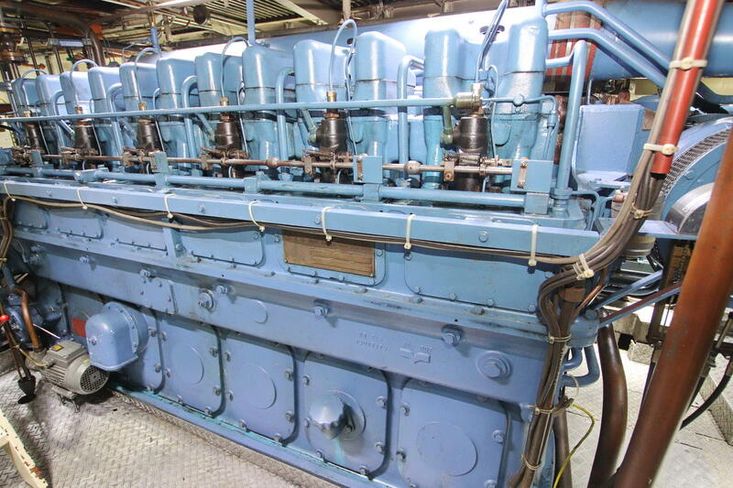

Engine(s)
Make and type
Stork Werkspoor SW DRO 216
Year of construction
1957, rebuilt 1984
Power
600 hp
Cylinders
6
Maximum speed
12 knots
Cruising speed
9 knots
Fuel consumption
33 l/h
Transmission
Brevo gearbox 3513
Cooling
Heat exchanger with external water
RPM gauge
Available
Oil pressure gauge
Available
Temperature gauge
Available
Fuel
Diesel
Fuel tanks
2 x 1700 L + 600 L day tank
Propeller
4-blade bronze
Electrics
Voltage
12 / 24 / 220 V
Batteries
Traction battery set 560 Ah
Dynamos
On main engine + auxiliary set
Battery charger
1 x Victron Multiplus II charger/inverter 24 V, 3000 watt, 70 amp
1 x Victron Energy charger 24 V, 100 amp
Converter
Victron Phoenix inverter 24 V, 3000 watt
Voltmeter
Available
Ampere meter
Available
Generator
18.5 kW Hyundai generator
Remarks
9 x 290 watt solar panels on shore
Safety Equipment
Life raft
2 x not certified
Life buoys
3 x, 2 with lights
Position buoy
EPIRB (batteries need replacement)
Life jackets
8 x
Emergency flares
Available
Bilge pumps
2-cylinder Lister for bilge pumping (bilge block), also fire pump
Emergency tiller
Available
Blower
Air vents
Fog horn
2 units
Fire extinguisher
7 units + fire blanket
Radar reflector
Available
Gas locker
Available
Remarks
In the forepeak a Bauer air compressor for filling starting air and diving cylinders (3 x 50 L air bottles in storage)

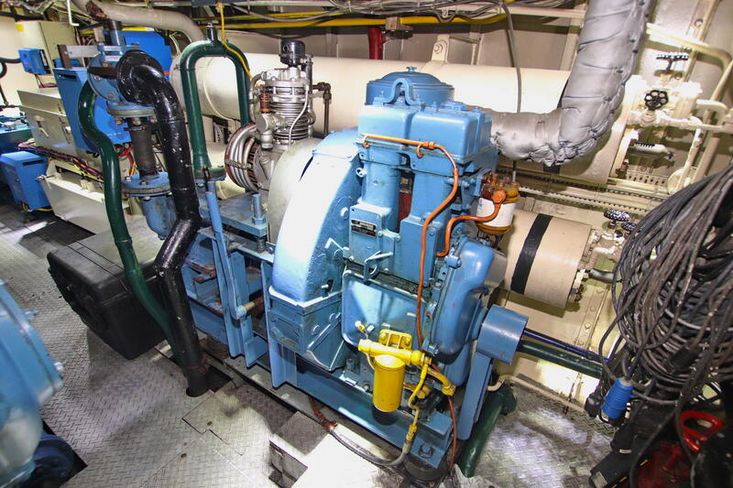

In the engine room a 2-cylinder Lister for service air, bilge pumping, deck wash, firefighting, and dynamo
Certification
CVO valid until 14 October 2029
